Specification of one head mini machine |
||
1 |
Model |
PF-MINI0602 |
2 |
Head |
2 head |
3 |
Working Area |
400*500mm head distance:500mm |
4 |
Neddles |
9/12/15 needles |
5 |
Speed |
Caps, Garments: 1000 RPM |
6 |
computer |
High-definition true color dahao/RUI NENG |
7 |
Spindle Motor |
Servo Motor |
8 |
Hook |
Good hook |
9 |
Functions |
Suitable for Caps, Garments |
10 |
Screen |
Touch Screen |
11 |
Color Change |
Automatic color change |
12 |
Trim |
Automatic Trimming |
13 |
Support Multiple Languages |
Chinese, English, Portugal, Turkey, Netherlands, France, Germany, Thailand, Arabia |
14 |
The embroidery test |
Embroidery can preview the pattern and embroidery track, and it can dispaly the running process of stitch in real time |
15 |
Import Pattern |
USB |
16 |
Pattern Format |
DST Format |
17 |
Operation |
Start, Stop, Emergency stop, Fast Running box, Slow Running box, Inching 100 degrees, line cutting, Color change neddles number, menu, border design, color change setting, set orgin, find origin, accelerate, decelerate |
18 |
Voltage |
110-220V |
19 |
Usage |
cap embroidery option /Flat embroidery option/Clothing embroidery option |
20 |
Stand |
1pcs |
21 |
Packing size |
1400*1120*910 |
22 |
Gross Weight |
320KGS |
A. Widely used for flat embroidery, cap embroidery and finished garments embroidery, like T-shirt
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network

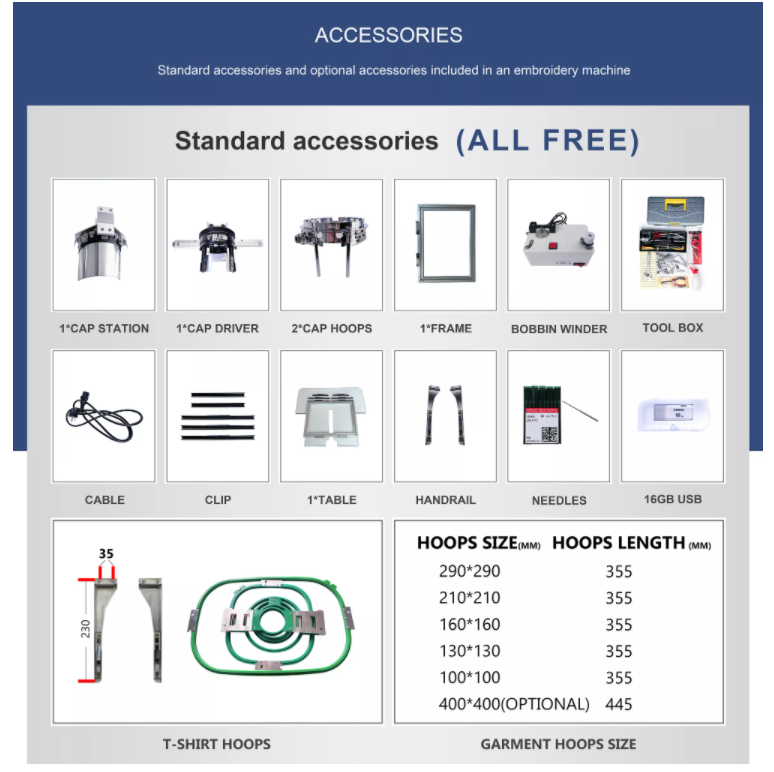

Professional standard accessories and materials, ready to use after out of box. More consumables and blanks are all available to meet customized needsmore and handle different types of embroidery business easily.
Don't let production capacity limit your speed of making money. alows you to operate on both heads without spending the budget of another machine, doubling efficiency. No longer have to suffer from staying up late to rush production, make it happen during the day.
Sew on anything :You could be able to sew 12\15color on finished caps, sweaters, golf shirts, jackets, baby caps, bags, aprons and
more.
large embroidery space of 360*510mm,any design is possible.
Sew with Ease: Once you own combined with the flat embroidery speed of 1200rpm,cap-embroidery speed of 850 rpm and
easy-to-use control panel, specifically designed for new embroidere.
Q1. How to insatll and use the embroidery machine?
We have the English teaching manual and videos;All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2.What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choosethe most suitable shipping service.
Q3. Can you provide the free shipping to sea port ?
Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4.How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you videocall anytime,our engineer will also go to oversea help our customers if necessary.
Q5.How can I make sure it's a securetransaction ?
Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6.Can you get the the machine customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Q7.How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8.What information may contain in my inquiry?
Your request your machine’s embroidery area /needle number /head number/head interval/other function need.
Q9.How to insatll and use the embroidery machine?
We have the English teaching manual and videos;All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
